Profiled Conevyor Belting by Fenner Dunlop

Profiled Conevyor Belting by Fenner Dunlop

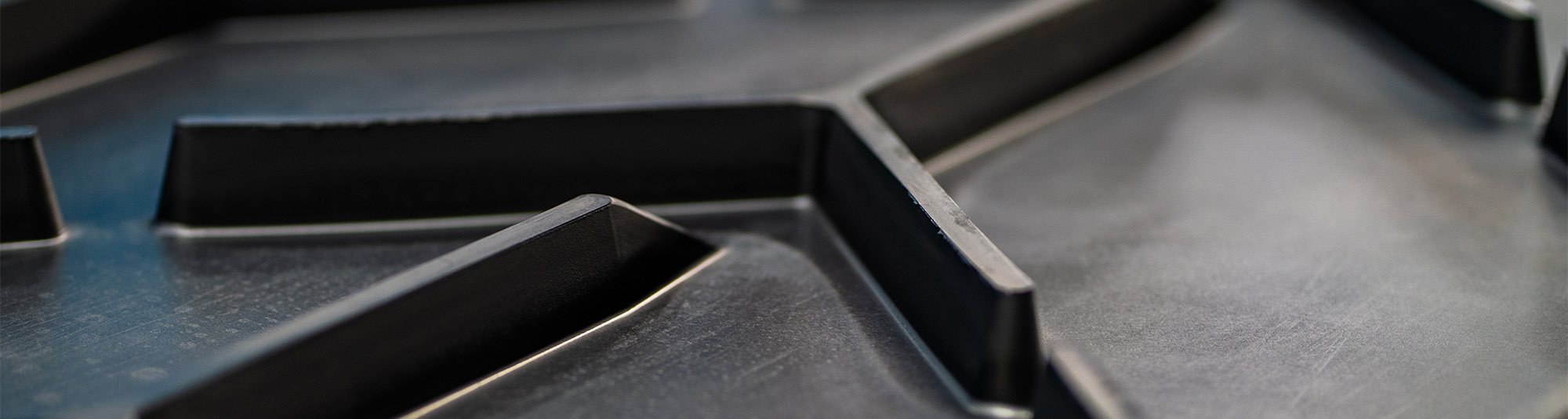

Fenner Dunlop Superfort ‘Super Strength’ Chevron Belts: The Pinnacle of Reliability

Discover the unmatched strength and reliability of Fenner Dunlop Superfort ‘super strength’ chevron belts. Designed to meet the toughest demands, these belts are crafted using a unique manufacturing process that sets them apart from the competition. Unlike traditional belts where chevrons are attached separately, our profiles are moulded and vulcanised in a single continuous production process, creating a homogeneous structure. This innovative design ensures unparalleled durability and strength while enabling the use of smaller pulley diameters for enhanced efficiency.

Applications for Every Challenge

Whether you’re transporting light materials or managing the heaviest, most challenging loads, Fenner Dunlop chevron belts rise to the occasion. With two profile heights to choose from, we provide tailored solutions for diverse applications:

  • 16mm Low Chevron: Ideal for smaller lump sizes and conveyor angles up to 20–25 degrees.
  • 32mm High Chevron: Perfect for larger lump sizes and steeper inclinations, delivering optimal performance even on the toughest terrain.

Product Range & Availability

Fenner Dunlop offers a wide range of chevron belts designed for various industries and applications. Standard profile widths range from 400mm to 1600mm, depending on the profile type. All belts are available in:

  • RA (High Abrasion Resistant)
  • ROS (Mineral Oil Resistant)

Custom cover grades and belt strengths are available upon request. All chevron belts feature moulded edges for enhanced durability and longevity.

Specialized Profiles for Maximum Performance

Multiprof™️

  • Perfect for steep inclines, with a highly durable Fishbone or anti-slip Rufftop surface.
  • Standard widths: 700mm to 1200mm.
  • Available in RA, Betahete (Heat Resistant), ROM, and ROS grades.

Rufftop

  • Specifically designed for individual items and packages prone to slippage on steep inclines.
  • Available in both regular and slider belt formats.

Fishbone

  • Combines a hi-grip surface with exceptional durability for challenging inclines.
  • Available in 250/2 construction as standard.

Special Custom Made Profiled Belts by Dunlop Service Italy

Standard Chevron
Designed for general material transport, these belts can be used on slider beds or with a double cover. All cleats are made with the durable Duncover 211 compound.

  • Cleat heights: 16 mm or 30 mm
  • Max chevron width: 1150 mm

Recycling Chevron
Developed for recycling operations, these belts feature high transversal cleats and free areas for wheel accommodation on the return side.

  • Max belt width: 2000 mm
  • Cleat heights: 16, 20, 30, 40, 50 mm

Multichevron
Used in specialized unit handling applications (e.g. cement bags), these belts are produced using molds and come in limited widths.

  • Profile height: 6 mm
  • Available widths: 770 mm, 610 mm, 460 mm
  • Supplied with a splice area and optional branding
  • Translator Belt – In addition to Multichevron belts, there is a specialized profile belt designed for specific applications.

40 mm “U” Profile Belt
This specialized belt is designed for waste recycling plants, offering unique advantages for handling liquid waste. The chevron design is closed, allowing for the efficient transport of liquids while minimizing leakage.

  • Profile width: 480 mm
  • Includes a special mold set and optional short supports for the splice area
  • 40 mm support structure reduces oscillation on return idlers

“Z” Profile
Made for ship loader machinery, particularly for transporting sulfur from oil refineries. Suitable for steep inclines and small-grain materials.

  • Max width: 1000 mm
  • High-performance profile designed for tough conditions

Custom Chevron Designs
Custom profiles can be developed on request to meet specific operational and performance requirements.

Why Choose Fenner Dunlop Chevron Belts?

  • Super Strength: Homogeneous structure for exceptional reliability.
  • Versatility: Tailored solutions for light to heavy-duty applications.
  • Custom Options: Wide range of widths, cover grades, and carcass constructions.
  • Durability: Built to handle the harshest environments with ease.
